5K series Horizontal Centrifugal Casting Machines

Horizonal Machines

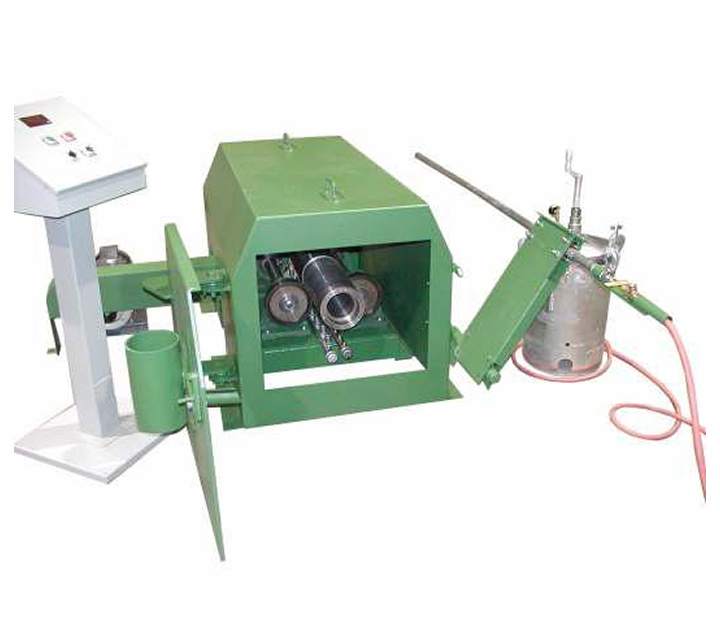

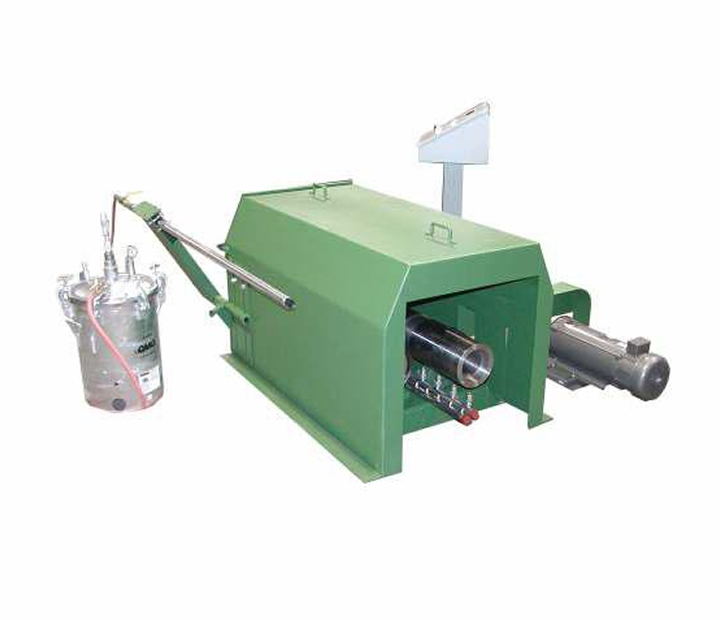

5K series Horizontal Centrifugal Casting Machines

Tulsa Centrifugal Casting Machines provides the latest in machine design technology using 3D Modeling CAD programs for the design of all types of Horizontal Axis machines.

The 5K series can produce a wide range of ferrous and non ferrous casting diameters and lengths for the production of cylinder liners, hollow billets, bushingstock, piston ring pots, and alloy steel tubes just to name a few.

Standard Features

  • Electronically controlled vari- able speed drive unit

  • Drive controller

  • Operators Control Station

  • Mold Water Cooling Manifold w/ Solenoid Valve

  • Mold Heater Manifold w/ Air/ Gas mixing tee assembly

  • Pouring Funnel

  • Protective Water Guard

  • Sample Centrifugal Mold Wash

  • Operators Manual

  • Foundation & Utility drawings

MODEL 5K SERIES MOLD AND CASTING SPECIFICATIONS

Mold Casting

Model No.

Max. O.D.

Min. O.D.

Max Length

Min Length

Max. O.D.

Min. O.D.

Max Length

5K12 S

12

(305 mm)

5

(127 mm)

26

(660 mm)

14

(355 mm)

10

(254 mm)

2

(51 mm)

24

(610 mm)

5K12 T

20

(508 mm)

5

(127 mm)

26

(660 mm)

14

(355 mm)

16

(406 mm)

2

(51 mm)

24

(610 mm)

5K24S

12

(305 mm)

5

(127 mm)

50

(1270 mm)

26

(660 mm)

10

(254 mm)

2

(51 mm)

48

(1219 mm)

5K24T

20

(508 mm)

5

(127 mm)

50

(1270 mm)

26

(660 mm)

16

(406 mm)

2

(51 mm)

48

(1219 mm)

5K36S

12

(305 mm)

5

(127 mm)

62

(1575 mm)

38

(965 mm)

10

(254 mm)

2

(51 mm)

60

(1524 mm)

5K36T

20

(508 mm)

5

(127 mm)

62

(1575 mm)

38

(965 mm)

16

(406 mm)

2

(51 mm)

60

(1524 mm)
