15K Horizontal Centrifugal Casting Machines

Horizonal Machines

15K Horizontal Centrifugal Casting Machines

Types of castings that can be produced

  • Furnace Rolls
  • Forming Rolls
  • Extrusion Billets
  • Ship shaft liners
  • Bi-Metal Rolls
  • Alloy Tubes
  • Reformer Tubes
  • Bushing Stock

Standard Equipment specifications

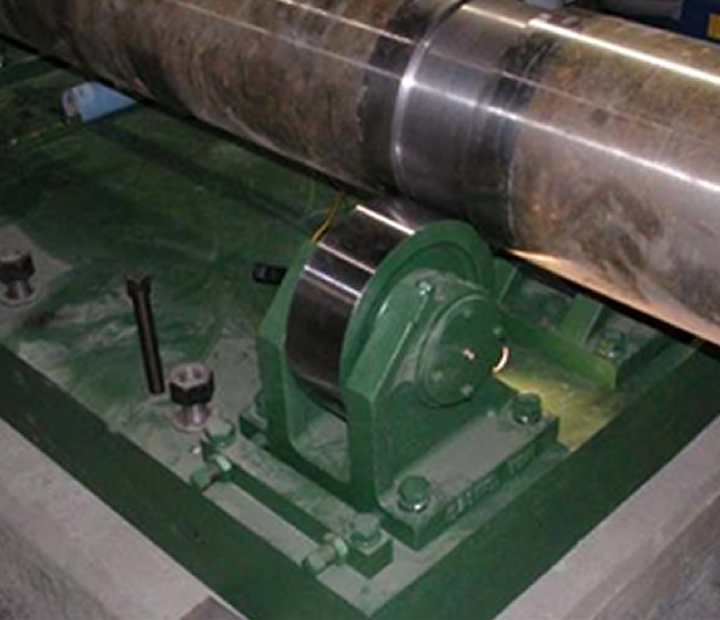

  • Spinner Base Assembly

  • Mold Cooling Assembly

  • Runner Pot

  • Operators Controls

  • Belt Guard

  • Mold Heating Assembly

  • Variable Speed Drive Unit

  • Spray System

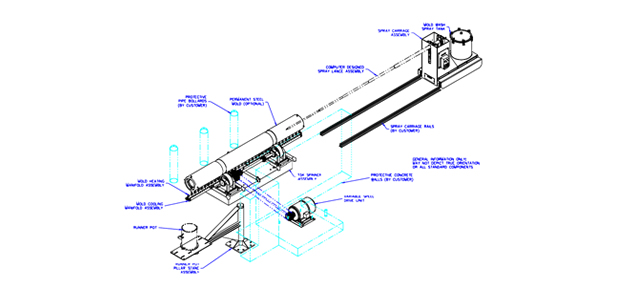

Typical Equipment Layout for 15K Series

Mold Length Area Width Area Length Floor Space 80 psi Air CFM 40 psi Water GPM 0.4 psi GAS CFM
4 Ft. (1.2M) 12 Ft. (3.7M) 25 Ft (7.6M) 300 Sq. Ft. 40 120 2.6
6 Ft. (1.8M) 12 Ft. (3.7M) 29 Ft (8.8M) 348 Sq. Ft. 40 180 4
8 Ft. (2.4M) 12 Ft. (3.7M) 33 Ft (10M) 396 Sq. Ft. 40 240 5.5
12 Ft. (3.7M) 12 Ft. (3.7M) 41 Ft (12.5M) 492 Sq. Ft. 40 360 8
14 Ft. (4.2M) 12 Ft. (3.7M) 45 Ft (13.7M) 540 Sq. Ft. 40 420 9.4
18 Ft. (5.5M) 12 Ft. (3.7M) 57 Ft (17.4M) 684 Sq. Ft. 40 600 13.4
