V5K Vertical Centrifugal Casting Machine

Vertical Machine

V5K Vertical Centrifugal Casting Machine

The Model V5K Vertical Centrifugal Casting Machine for the production of ferrous or non-ferrous castings. Capable of spinning up to 75 G force on the metal being cast.

Standard Features

  • Variable Speed Drive system

  • Mold Water Cooling

  • Water Cooled Spinner Shaft

  • Pouring Funnel

  • Mold Adapter Table

  • Operators Controls

  • Mold Wash Spray Gun

  • Sample of Mold Wash

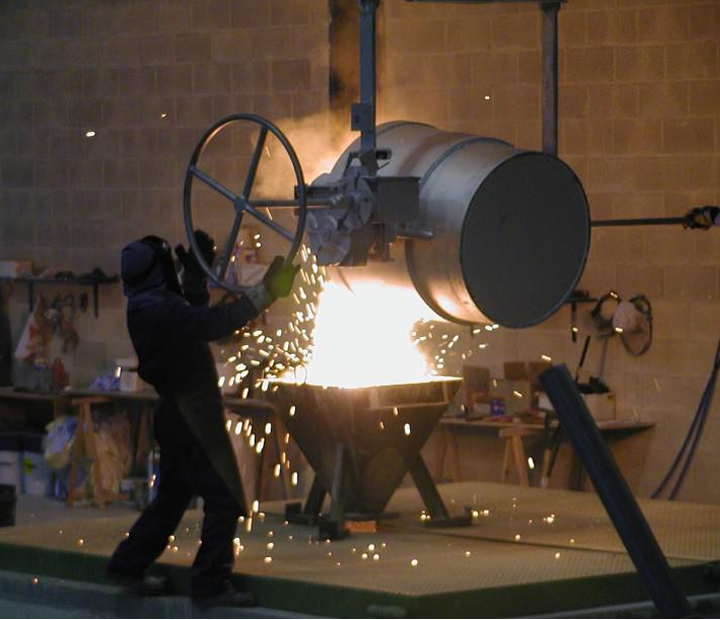

TYPICAL PIT MOUNTED VERTICAL CENTRIFUGAL CASTING MACHINE

Average Foundation Pit Size: 165” (4.2 M) x 142” (3.6 M) x 154” (3.9M)

Utility Requirements

Air: 30 CFM @ 80 psi (Mold Spray)

Water: 100 gpm @ 40 psi (Mold Cooling)

Water: 10 gpm @ 40 psi (Shaft Cooling)

Gas: 2.1 cfm @ 0.4 psi (Mold Heating)

Electrical: Plant voltage, 3 Phase, 50/60 cycle power Main Drive Unit
